Precision Torque in Automotive Work: Why Critical Fasteners Demand More Than a Guess

Precision Torque in Automotive Work: Why Critical Fasteners Demand More Than a Guess

The modern automobile contains thousands of threaded fasteners. Most of them are forgiving. A plastic clip or a small bracket bolt can tolerate some variation in torque without catastrophic consequences. But a subset of fasteners is different. These are the critical connections that affect safety, performance, and reliability.

Wheel lugs. Brake caliper bolts. Cylinder head bolts. Connecting rod caps. Flywheel bolts. Suspension components. These fasteners have precise torque specifications for a reason. Deviation from those specifications—in either direction—can lead to failure.

The Engineering Behind Torque Specifications

When an engineer specifies a torque value for a fastener, that number is the result of calculations and testing. The goal is to achieve a specific clamp load: the amount of compressive force the bolt applies to the components it holds together.

The relationship between torque and clamp load is not perfectly linear, but it is predictable within a range. The engineer selects a torque value that will produce enough clamp load to prevent movement or separation under expected operating conditions, without exceeding the yield strength of the bolt or the components it secures.

Too little torque means insufficient clamp load. The fastener may loosen under vibration. Gaskets may leak. Components may shift or separate.

Too much torque means the bolt may yield—stretch permanently. A yielded bolt no longer provides the designed clamp load, even though it may still feel tight. In severe cases, the bolt may fracture immediately or develop cracks that lead to delayed failure.

Wheel Lugs: The Most Common Application

Every car owner should understand wheel lug torque. Wheels experience immense forces during acceleration, braking, and cornering. The lugs must keep the wheel seated firmly against the hub. Too loose, and the wheel can wobble, leading to uneven wear, vibration, and eventually wheel separation. Too tight, and the studs can stretch or the wheel can warp.

Most passenger vehicles specify lug torque between 80 and 110 foot-pounds. That range is narrow for a reason. A digital torque wrench set to the exact value eliminates uncertainty. The Uharbour Digital Torque Wrench covers this range comfortably, with its 0.66 to 44.29 foot-pound capacity extending well beyond typical lug requirements when using appropriate adapters.

Brake Systems: Safety Demands Accuracy

Brake caliper bolts are another high-stakes application. These bolts hold the caliper to the knuckle or bracket. The braking force transfers through these bolts. If they are too loose, the caliper can move, reducing braking effectiveness and causing uneven pad wear. If they are too tight, the bolts can stretch or the mounting ears can crack.

Manufacturers specify torque for caliper bolts precisely. On many vehicles, that specification falls between 60 and 80 foot-pounds for the bracket bolts and 20 to 30 foot-pounds for the caliper pins. Using a torque wrench that provides real-time feedback ensures you hit these numbers exactly.

Why Click-Type Wrenches Fall Short

Many home mechanics own a click-style torque wrench. These tools are better than nothing, but they have limitations that are worth understanding.

Click wrenches require calibration to remain accurate. Dropping a click wrench or leaving it set at a high torque value for extended periods can shift its calibration. Most home mechanics never have their click wrenches recalibrated. They assume the click is accurate. Often, it is not.

Additionally, click wrenches do not show you the torque as you apply it. You simply crank until you hear or feel a click. If the click mechanism is dirty, worn, or miscalibrated, you will not know until after a problem occurs.

The Digital Advantage

Digital torque wrenches like the Uharbour model offer several advantages for automotive work. The ±1 percent accuracy is verifiable and consistent. The LED screen shows real-time torque values, so you can see exactly how much force you are applying at every moment.

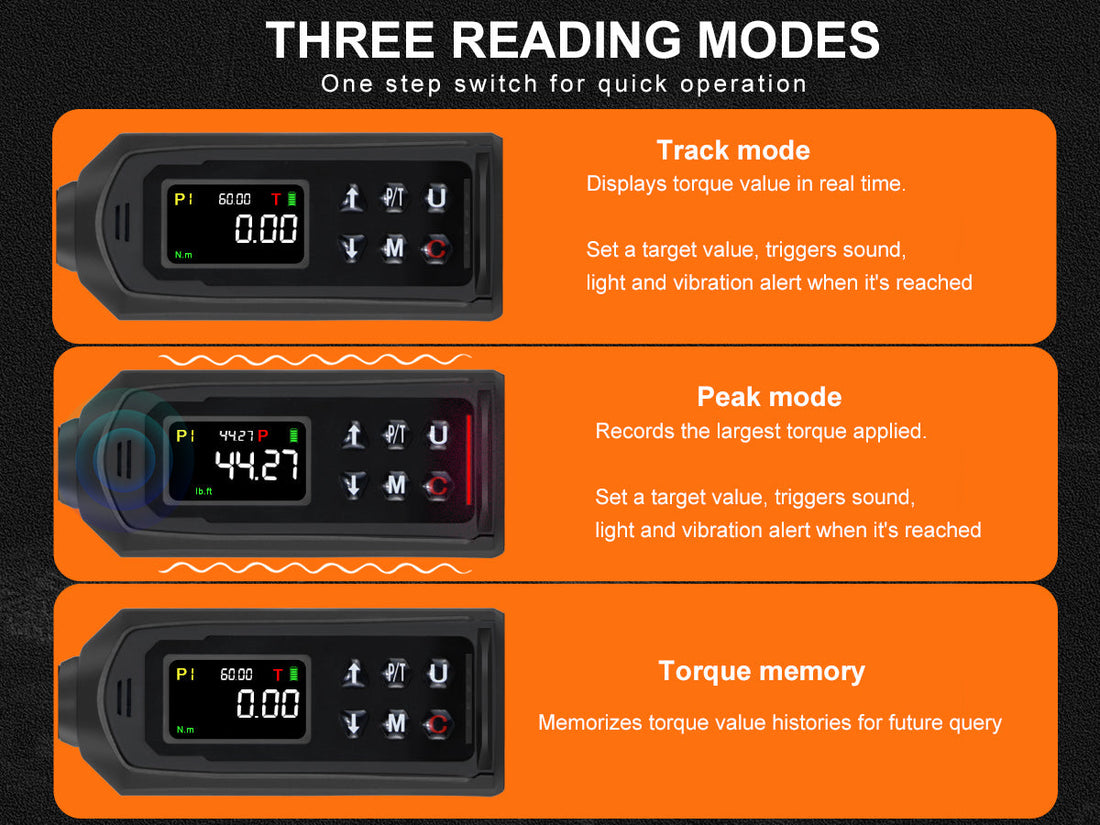

The Peak mode is ideal for most automotive fasteners. You set your target torque. The screen displays the increasing torque as you tighten. When you reach the target, vibration, buzzer, and LED light all activate simultaneously. You stop. No overshoot. No uncertainty.

The Track mode is useful for loosening operations or for verifying the torque required to break loose a corroded fastener. Seeing the peak torque required to loosen a bolt can provide diagnostic information about corrosion, thread damage, or previous over-torquing.

Dual-Direction Ratchet for Access

Automotive work often involves tight spaces. The ability to work in both clockwise and counterclockwise directions is essential. The Uharbour dual-direction ratchet head allows you to torque in either direction without switching tools. The reversible mechanism engages positively and releases smoothly, which is particularly valuable when working in engine bays or wheel wells where space is limited.

Five Units for Versatility

Different vehicle manufacturers specify torque in different units. Domestic vehicles typically use foot-pounds. European vehicles use Newton-meters. Older manuals may use kilogram-meters. The Uharbour wrench supports all five units, eliminating conversion errors. You select the unit that matches your service manual. The screen displays the value correctly. No math required.

A Note on Fastener Condition

No torque wrench can compensate for damaged threads or contaminated fasteners. Before applying torque, inspect the threads. Clean them if necessary. Lubrication affects torque values significantly. Most torque specifications assume clean, dry threads unless otherwise noted. If you apply lubricant, the same torque value will produce higher clamp load, increasing the risk of over-torquing. Always follow the manufacturer’s recommendations for lubrication.

The Investment Perspective

A quality digital torque wrench costs significantly less than a single tow bill, a brake system repair, or an engine teardown. For the home mechanic who performs regular maintenance, the tool pays for itself quickly. The first time it prevents a stripped thread or a broken bolt, it has justified its cost.

The Uharbour Digital Torque Wrench is priced for the serious DIYer. It delivers professional-grade features without requiring a professional-grade budget. For anyone who works on their own vehicle and cares about doing the job correctly, it is a worthwhile addition to the toolbox.
